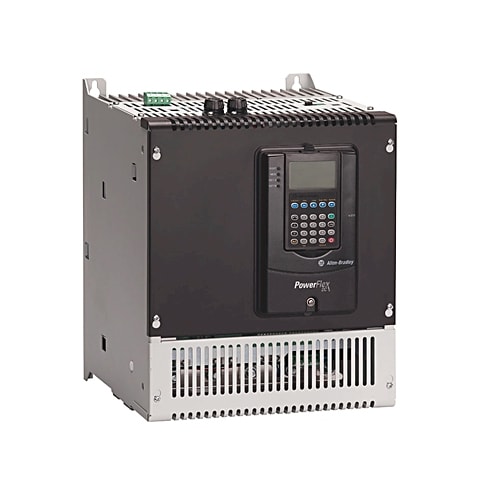

Allen-Bradley - PowerFlex 540 A DC Drive - 20P41AE540RA0NNN

PowerFlex DC Drive, 600 VAC, 3 PH, 540 Amps, 400 HP, IP20, NEMA/UL Type Open, with conformal coating, No HIM (Blank Plate), User Manual, No Communication Module

• Power Ratings

• ◦200…240V: 1.2…224 kW / 1.5…300 Hp / 7…1050 A

• ◦380…480V: 1.5…671 kW / 2…900 Hp / 4.1…1494 A

• ◦500…600V: 37…932 kW / 50…1250 Hp / 67.5…1688 A

• ◦690V: 298…1044 kW / 400…1400 Hp / 452…1582 A

• Both regenerative and non-regenerative configurations

• Open type enclosure, armature converter

• Regulated field converter

• Advanced regulator with integrated DPI™ functionality, DC tachometer and encoder capability

• Noise and voltage suppression for noise-sensitive environments

• Flexible feedback and communication options

• Extensive I/O—up to 12 digital inputs and outputs, 3 analog inputs and 4 analog outputs

• Optimized global voltage settings designed to worldwide standards

• Flash upgradeable

• Configuration and programming via integral LCD keypad, or software

• Premier Integration with PowerFlex® AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time
