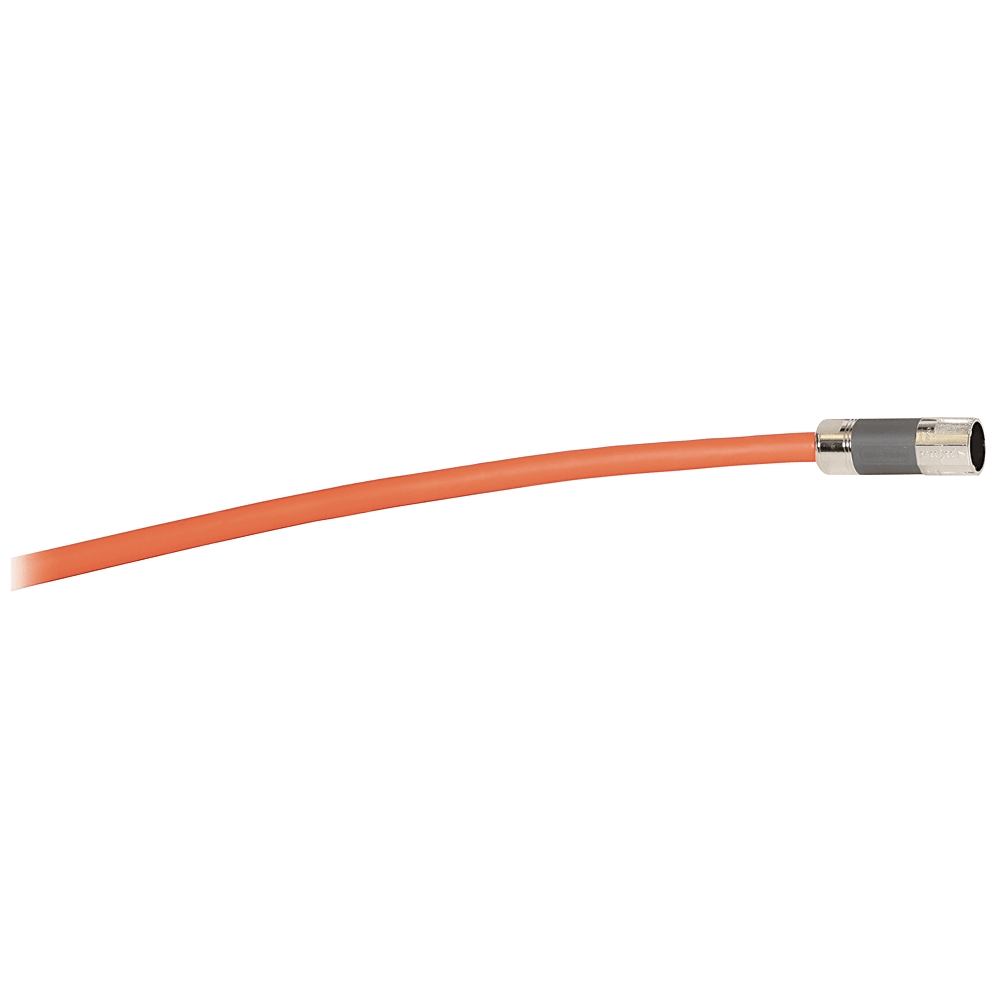

Allen-Bradley - Kinetix Cable Single DSL 2090 - 2090-CSBM1DF-14AF12

Kinetix Single Cable 14 AWG AWG, Continuous-flex, Single Motor Power With Brake Wires, 12m

• NFPA-79 compliant

• UL Listings: 10, 8, and 6 AWG cable - Flexible VFD servo cable, 18 and 14 AWG cables - PLTC-ER

• – UL AWM, 1000V, 105 °C construction

• – cUR AWM I/II A/B, 600V, 105 °C construction for 6 and 8 AWG cables

• CSA AWM I/II A/B, 1000V, 105 °C construction for 10, 14, and 18 AWG cables

• Low capacitance design to maximize system power density

• SpeedTec connection system

• Encoder communication data pair with state of the art noise rejection

• DESINA compliant jacket (orange) coloring for easy identification and separation of cables in a machine

• Rated flex-cycles in linear flexing applications

• – 10, 14, and 18 AWG continuous-flex cables and continuous-flex extension cables are suitable for 20 million

• flex-cycles and 10 million cycles in bending (tic-toc) applications (see illustration on page 3)

• – 8 AWG continuous-flex cables and continuous-flex extension cables are suitable for 6.5 million flex-cycles

• – 6 AWG continuous-flex cables and continuous-flex extension cables are suitable for 5.0 million flex-cycles

• TPE jacket with superior mechanical and chemical properties

• Cable features overall tinned copper braid with aluminum/polyester tape, delivering 100% coverage for excellent

• EMC/EMI performance and permits power and signal conductors in a single cable

• Cables are included in the Rockwell Automation® servo system Declaration of Conformity (DoC)
